Royal understands well that no one machine can fit all products. We listen to customers demands and provide our most suitable proposal and unique coating solutions from machine design, production till coating recipes development. Below are some of our OEM/ODM projects.

Royal technology has developed and built the whole supply chain for Car LOGO board PVD metalizing service. From mold design & manufacturing, thermal vacuum forming process, UV curing base/top coatings; PVD chroming metalizing till LED lighting assemble, we are able to provide a complete turn-key coating solution.

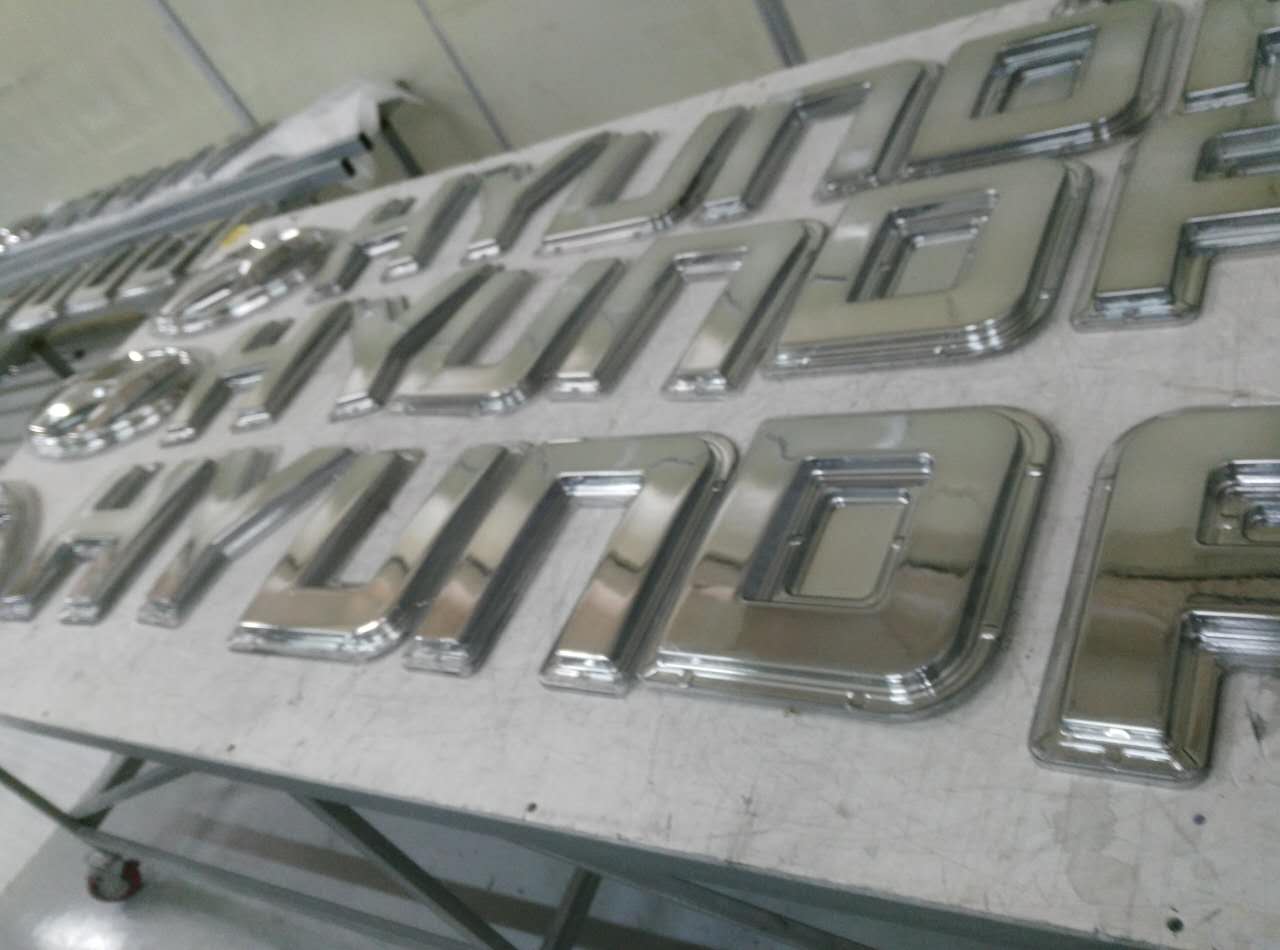

This series of high vacuum metallizing equipment is a customized designed system for manufacturing high quality of mirror finishing and see-through (transparent effect) finishing thin films on 3D automotive acrylic billboards.
With the PVD thermal evaporation technology, which deposits high reflection film on PMMA (Acrylic) surface, gives an outstanding coating layers as below: during the day time, sign symbols look like solid metal ( stainless steel effect); while at night, they are illuminated ( LED light inside is installed ) from front, back and side views.

Applications:

3D LED illuminated Automobile LOGO and sign symbols, PC/PMMA Chrome Coating, Aluminum/Silver/Copper/ SS wires Metalizing,PC panel sheets of mirrors.

Model A:  top coating structure
RTEP3600

Advantages
1. The door located in the railway track, sliding model, easy to operate and very convenient for loading/unloading
1.1 Max. product size: 3000mm
1.2  Suitable for see-through finish
2. The unique rotary rack and evaporation system design to guarantee a high uniformity.
2.1 The height from substrate to evaporation source can be adjusted flexibly ;
2.2  Evaporation sources distance can be adjusted;
2.3. Three  groups of evaporation sources for a perfect full area coating.

RTEP2200

Advantages

• Robust structure design and high quality configurations
• PLC + Touch Screen Operation System, fully automatic / manual control
• High efficiency pumping package with low power consumption configurations
• Exclusively designed rotating Carousel structure for easy loading/uploading
• Easy access to the working environment for maintenance
• Suitable for see-through finishing coating

Model B: Cylindrical Chamber with Planetary Rotary System

RTEP2500

Advantages:

• Plasma cleaning, argon gas bombardment device, glow discharge system.
• PECVD process for top coating after Aluminum layer deposition.
• Robust structure design and high quality configurations
• PLC + Touch Screen Operation System, fully automatically /Manually control
• Fast Vacuum Evacuation System
• Exclusively designed rotating Carousel structure for high uniformity film deposition
• Easy access to the working environment for maintenance

Model C:  cubic chamber

RTEP6600/4500

The door is located in the railway track,  sliding model, easy to operate and very convenient for loading/unloading.
The unique rotary rack and evaporation system design to guarantee a high uniformity.
The distance from substrate to evaporation source can be adjusted flexibly;
Evaporation sources distance can be adjusted;
The substrate holder is sliding forward/backward in the chamber.
The 2nd substrate trolley is an option to enhance efficiency.

Flexible configurations: the machine is set according to coating processes and customer’s requirements.
